Custom RJ45 Ethernet Line Breaker Development Case Study
Project overview: This real RFQ case involved a custom 1U rack-mounted RJ45 Ethernet line breaker. The buyer needed a complete engineered device, not only a standard network accessory or loose PCB.
RFQ Background and Core Requirements
The client provided technical requirements and prototype references for a device that could physically break or restore Ethernet connections through controlled relay logic. The product needed to fit a professional rack-mounted format and support remote or local operation.
SEO Engineering Focus
This case is especially relevant for buyers searching for a custom RJ45 Ethernet line breaker, relay-controlled Ethernet ports, a 1U rack-mounted network device, or an ADAM6060 control logic integration. It shows how an overseas RFQ can be converted into custom PCB engineering, enclosure layout, functional testing and production-ready assembly.
Main Engineering Challenges
- Relay-controlled RJ45 switching: the device had to break or restore network lines through controlled relay logic while keeping the port arrangement clear for operation.
- Remote and local operation: the ADAM6060 module needed predictable command control, status feedback and operating-mode behavior.
- 1U enclosure constraint: internal wiring, PCB position, connectors, front panel layout and power supply all had to fit inside a rack-mountable enclosure.
- Prototype correction: early prototype remarks had to be translated into specific engineering fixes before production.
Prototype Reference and Hardware Review

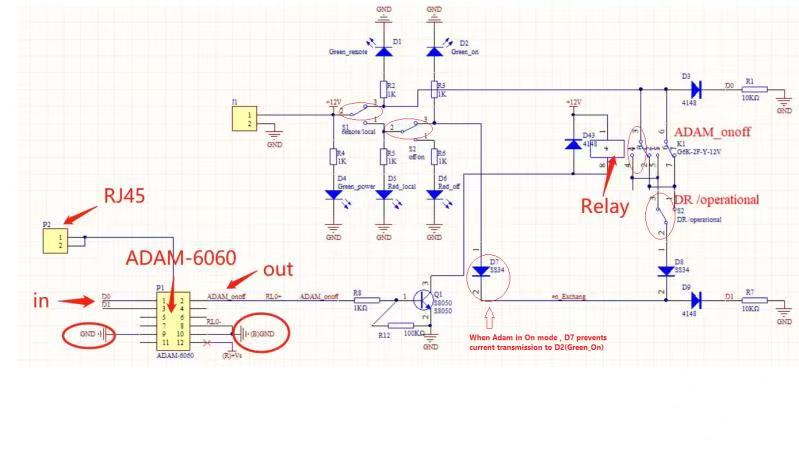

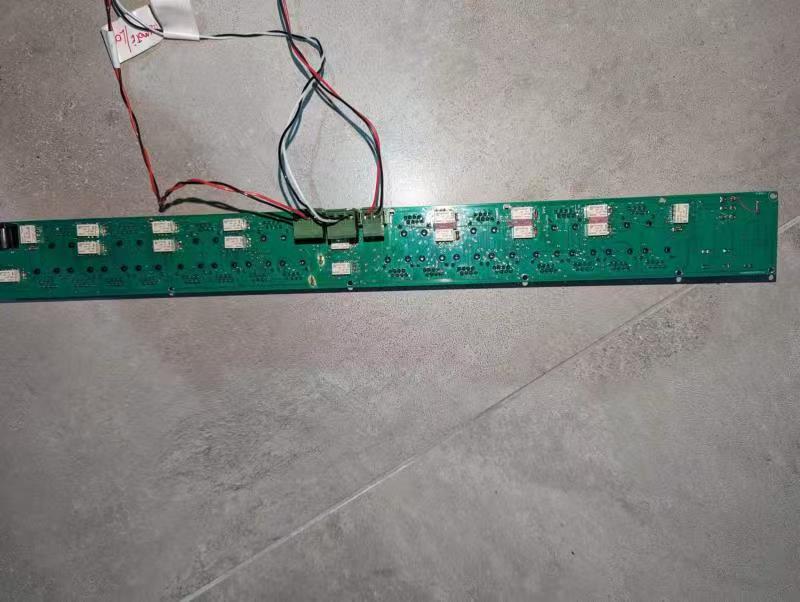

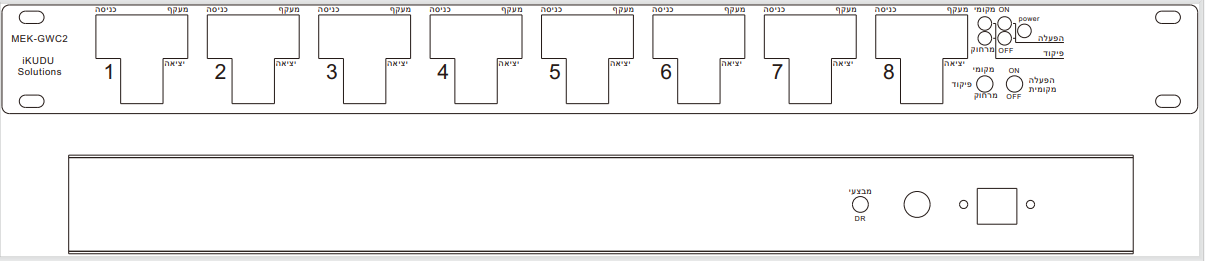

Photos and engineering remarks were used to verify the internal component layout, wiring path, relay boards, terminal blocks, RJ45 positions and front-panel structure before the project moved into production preparation.
Control Logic and ADAM6060 Integration
A key part of the case was not the enclosure itself, but the behavior behind the line breaker. The product needed remote command control, readable status feedback, local button behavior and clear LED indication. Each ambiguous point had to become a testable function before production.
Engineering point: for custom B2B devices, a small logic detail can become a major production issue. Control states and user-visible indicators need to be defined precisely before batch manufacturing.
Prototype Feedback, Fixes and Production Readiness
After reviewing prototype remarks and updated engineering feedback, the design moved into a correction phase. This included checking interface details, PCB and wiring behavior, labels, front-panel requirements and production package requirements.
What This Case Shows
This project is a strong example of custom engineering support for overseas buyers. The value was not only sourcing a supplier, but helping the client convert a technical RFQ into a product that could be designed, corrected, assembled and produced.
- Requirement review from real technical files and prototype references.
- Electrical and mechanical engineering coordination for a custom rack-mounted device.
- Prototype correction before production to avoid repeated batch-level issues.
- Support for small-batch manufacturing when the product is too specific for standard catalog sourcing.
